analytics Module Reference

Functions/Subroutines
subroutine, public	store_state (averages, config, setup)
	Subroutine to add this configuration to the average.
subroutine, public	average_state (averages, setup, n_steps)
	Subroutine to compute average occupancies.
integer function, public	total_particle_count (setup, config)
	Function to count the total number of particles in the box.
subroutine, public	print_particle_count (setup, config, my_rank)
	Subroutine to print the number of atoms of each species.
subroutine, public	lattice_shells (setup, shells, configuration)
	Subroutine to compute lattice shell distances.
real(real64) function, dimension(setup%n_species, setup%n_species, n_shells), public	radial_densities (setup, configuration, n_shells, shell_distances)
	Subroutine to compute radial densities (ASRO parameters)
recursive subroutine	quicksort (array)
	Implementation of the quicksort algorithm for arrays.

Function/Subroutine Documentation

average_state()

subroutine, public analytics::average_state	(	real(real64), dimension(:,:,:,:), intent(inout), allocatable	averages,
		type(run_params), intent(in)	setup,
		integer, intent(in)	n_steps )

Subroutine to compute average occupancies.

At the end of the simulation, divide the stored occupancies by the number of times we stored them, to get the average occupancy of each lattice site.

Author

C. D. Woodgate

Date

2019-2025

Parameters

averages	Array of floats where averages are being stored
setup	Derived type containing simulation parameters
n_steps	Number of steps at which the state was stored

Returns

None

Definition at line 80 of file analytics.f90.

    type(run_params), intent(in) :: setup
    integer, intent(in) :: n_steps
    real(real64), dimension(:,:,:,:), intent(inout), allocatable :: averages
    integer :: i

    do i=1, setup%n_species
      averages(i,:,:,:) = (1.0/real(n_steps, real64))*averages(i,:,:,:)
    end do

lattice_shells()

subroutine, public analytics::lattice_shells	(	type(run_params), intent(in)	setup,
		real(real64), dimension(:), allocatable	shells,
		integer(array_int), dimension(:,:,:,:)	configuration )

Subroutine to compute lattice shell distances.

Could just calculate these once, but this routine is good for a variety of lattice types.

Author

C. D. Woodgate

Date

2019-2025

Parameters

setup	Derived type containing simulation parameters
shells	Array where shell distances will be stored
config	Current atomic configuration

Returns

None

Definition at line 205 of file analytics.f90.


    integer(array_int), dimension(:,:,:,:) :: configuration
    type(run_params), intent(in) :: setup
    integer :: i,j,k,b,l
    real(real64) :: dist
    !real(real64), dimension(3) :: r_vec
    real(real64), dimension(:), allocatable :: all_shells, shells

    ! Factor of eight to account for the fact that simulation
    ! doubles number of cells in each direction to build lattice
    allocate(all_shells(8*setup%n_1*setup%n_2*setup%n_3*setup%n_basis+1))

    all_shells = 0.0_real64
    shells = 0.0_real64

    l = 1

!    ! Loop over all lattice sites
!    do k=1, 2*setup%n_3
!      do j=1, 2*setup%n_2
!        do i=1, 2*setup%n_1
!          do b=1, setup%n_basis
!            r_vec = real(i)*setup%lattice_vectors(:,1) + &
!                    real(j)*setup%lattice_vectors(:,2) + &
!                    real(k)*setup%lattice_vectors(:,3) + &
!                    real(b)*setup%basis_vectors
!            dist = norm2(r_vec)
!            all_shells(l) = dist
!            l=l+1
!         end do
!        end do
!      end do
!    end do

    ! Loop over all lattice sites
    do k=1, 2*setup%n_3
      do j=1, 2*setup%n_2
        do i=1, 2*setup%n_1
          do b=1, setup%n_basis
            ! Cycle if this lattice site is empty
            if (configuration(b,i,j,k) .eq. 0_array_int) cycle
            dist     = sqrt(real((k-1)**2) + &
                            real((j-1)**2) + &
                            real((i-1)**2))
            all_shells(l) = dist
            l=l+1
         end do
        end do
      end do
    end do

    ! Order the list
    call quicksort(all_shells)

    ! Counter for how many non-repeated distances
    ! we have counted
    l=1

    ! Count the non-repeated distances
    do i=1, size(all_shells)-1
      if (abs(all_shells(i)-all_shells(i+1)) .lt. 1e-3_real64) cycle
      shells(l) = all_shells(i)
      l=l+1
      if (l .gt. setup%wc_range) exit
    end do

    ! Deallocate the array of all distances
    deallocate(all_shells)


Here is the call graph for this function:

Here is the caller graph for this function:

print_particle_count()

subroutine, public analytics::print_particle_count	(	type(run_params)	setup,
		integer(array_int), dimension(:,:,:,:), intent(in)	config,
		integer	my_rank )

Subroutine to print the number of atoms of each species.

Author

C. D. Woodgate

Date

2019-2023

Parameters

setup	Derived type containing simulation parameters
config	Current atomic configuration

Returns

None

Definition at line 135 of file analytics.f90.

    !integer(array_int), allocatable, dimension(:,:,:,:), intent(in) :: config
    integer(array_int), dimension(:,:,:,:), intent(in) :: config
    type(run_params) :: setup
    integer, dimension(4) :: sizes
    integer, dimension(:), allocatable :: species_count
    integer :: i,j,k, n, my_rank

    if(my_rank == 0) then
      write(6,'(16("-"),x,"Checking contents of simulation cell(s)",x, 15("-"),/)')
    end if

    sizes = shape(config)

    allocate(species_count(setup%n_species))

    species_count = 0
    n=0

    do k=1, sizes(4)
      do j=1, sizes(3)
        do i=1, sizes(2)
          if (config(1,i,j,k) .ne. 0_array_int) then
            n = n+1
            species_count(config(1,i,j,k)) = &
              species_count(config(1,i,j,k)) + 1
          end if
        end do
      end do
    end do

    if(my_rank == 0) then
      write(6,'(x,"Simulation cell is",x,A,/)') setup%lattice
      write(6,'(x,"There are:",/)')
      write(6,'(x,I3,x,"cells in direction 1,")') setup%n_1
      write(6,'(x,I3,x,"cells in direction 2,")') setup%n_2
      write(6,'(x,I3,x,"cells in direction 3,",/)') setup%n_3
      write(6,'(x,"for a total of ",I5,x,"atoms in the cell.",/)') n

      write(6,'(x,"The breakdown is:",/)')

      write(6,'(x,"Index | Element | Number of Atoms")')
      write(6,'(x,33("-"))')
      do i=1, setup%n_species
        write(6,'(x,I5," |      ", A, " | ", I9)')                         &
              i, setup%species_names(i), species_count(i)
      end do
    end if

    deallocate(species_count)

    if(my_rank == 0) then
      write(6,'(/,17("-"),x,"End of info about simulation cell(s)",x, 17("-"),/)')
    end if


Here is the caller graph for this function:

quicksort()

recursive subroutine analytics::quicksort ( real(real64), dimension(:), intent(inout) array )

private

Implementation of the quicksort algorithm for arrays.

Puts an array of real numbers into size order from smallest to largest. Note that this operates on the input array—if you would like to keep the unsorted array, make a copy of it.

Author

C. D. Woodgate

Date

2019-2023

Parameters

array

Array of real (real64) numbers to sort

Returns

None

Definition at line 420 of file analytics.f90.


    real(real64), intent(inout)::array(:)
    real(real64) :: temp,pivot
    integer :: i,j,last,left,right

    last=size(array)

    if (last.lt.50) then ! use insertion sort on small arrays
       do i=2,last
          temp=array(i)
          do j=i-1,1,-1
             if (array(j).le.temp) exit
             array(j+1)=array(j)
          enddo
          array(j+1)=temp
       enddo
       return
    endif
    ! find median of three pivot
    ! and place sentinels at first and last elements
    temp=array(last/2)
    array(last/2)=array(2)
    if (temp.gt.array(last)) then
       array(2)=array(last)
       array(last)=temp
    else
       array(2)=temp
    endif
    if (array(1).gt.array(last)) then
       temp=array(1)
       array(1)=array(last)
       array(last)=temp
    endif
    if (array(1).gt.array(2)) then
       temp=array(1)
       array(1)=array(2)
       array(2)=temp
    endif
    pivot=array(2)

    left=3
    right=last-1
    do
       do while(array(left).lt.pivot)
          left=left+1
       enddo
       do while(array(right).gt.pivot)
          right=right-1
       enddo
       if (left.ge.right) exit
       temp=array(left)
       array(left)=array(right)
       array(right)=temp
       left=left+1
       right=right-1
    enddo
    if (left.eq.right) left=left+1
    call quicksort(array(1:left-1))
    call quicksort(array(left:))


Here is the call graph for this function:

Here is the caller graph for this function:

radial_densities()

real(real64) function, dimension(setup%n_species,setup%n_species, n_shells), public analytics::radial_densities	(	type(run_params), intent(in)	setup,
		integer(array_int), dimension(:,:,:,:)	configuration,
		integer, intent(in)	n_shells,
		real(real64), dimension(:), allocatable	shell_distances )

Subroutine to compute radial densities (ASRO parameters)

This routine computes the conditional probabilities of one type of atom neighbouring another type of atom. These are not the Warren-Cowley ASRO parameters, but you can convert to them using a simple rescaling.

Author

C. D. Woodgate

Date

2019-2025

Parameters

setup	Derived type containing simulation parameters
configuration	Current atomic configuration
n_shells	Number of shells on which to compute probabilities
shell_distances	Array of lattice shell distances

Returns

The computed radial densities (conditional probabilities)

Definition at line 293 of file analytics.f90.

    type(run_params), intent(in) :: setup
    integer(array_int), dimension(:,:,:,:) :: configuration
    real(real64), dimension(:), allocatable :: shell_distances
    real(real64), dimension(setup%n_species,setup%n_species,           &
                            n_shells) :: r_densities
    integer, intent(in) :: n_shells
    integer :: i_1,i_2,i_3,j_1,j_2,j_3,j_b,jj_1,jj_2,jj_3, &
               l, species_i, species_j, i,j, i_b
    integer :: loop_1, loop_2, loop_3
    integer, dimension(setup%n_species) :: particle_counts
    real(real64) :: distance, d_x, d_y, d_z

    ! Array for counting the number of each species
    ! Initialise it to zero
    particle_counts = 0

    ! Output array of radial densities
    ! Initialise it to zero
    r_densities = 0.0_real64

    ! Count how many of each species there are
    do i_3=1, setup%n_3*2
      do i_2=1, setup%n_2*2
        do i_1=1, setup%n_1*2
          do i_b=1, setup%n_basis
            do l=1, setup%n_species
              if (configuration(i_b, i_1, i_2, i_3) .eq.              &
                                int(l, kind=array_int)) then
                particle_counts(l) = particle_counts(l) + 1
              end if
            end do
          end do
        end do
      end do
    end do

    ! Check that we won't divide by zero later
    do l=1, setup%n_species
      if (particle_counts(l) .eq. 0) then
        print*, 'Warning, one or more particle counts are zero in radial_densities()'
      end if
    end do

    ! For small systems, limit loop size to prevent double counting
    loop_1 = min(setup%n_1, 5)
    loop_2 = min(setup%n_2, 5)
    loop_3 = min(setup%n_3, 5)

    ! Loop over all lattice sites
    do i_3=1, 2*setup%n_3
      do i_2=1, 2*setup%n_2
        do i_1=1, 2*setup%n_1
          do i_b=1, setup%n_basis
          ! Cycle if this site is empty
          if (configuration(i_b, i_1, i_2, i_3) .eq. 0_array_int) cycle
            ! Loop over neighbouring sites, accounting for
            ! P.B.C.s
            do jj_3=i_3-loop_3, i_3+loop_3, 1
              j_3 = modulo(jj_3-1, 2*setup%n_3) + 1
              do jj_2=i_2-loop_2, i_2+loop_2, 1
                j_2 = modulo(jj_2-1, 2*setup%n_2) + 1
                do jj_1=i_1-loop_1, i_1+loop_1, 1
                  j_1 = modulo(jj_1-1, 2*setup%n_1) + 1
                  do j_b=1, setup%n_basis
                    if (configuration(j_b, j_1, j_2, j_3) .eq. 0_array_int) cycle
                    ! Compute the distance to this site, accounting
                    ! for PBCs
                    d_x = real(i_1-j_1)
                    d_y = real(i_2-j_2)
                    d_z = real(i_3-j_3)

                    d_x = d_x - float(2*setup%n_1)* &
                                nint(d_x/float(2*setup%n_1))
                    d_y = d_y - float(2*setup%n_2)* &
                                nint(d_y/float(2*setup%n_2))
                    d_z = d_z - float(2*setup%n_3)* &
                                nint(d_z/float(2*setup%n_3))

                    distance = sqrt(d_x**2 + d_y**2 + d_z**2)

                    ! Loop over and find which shell this sits in
                    do l=1, n_shells
                      if (abs(distance - shell_distances(l)) &
                          .lt. 1e-3_real64) then

                        ! Add it to the relevant entry for this shell
                        species_i = configuration(i_b,i_1, i_2, i_3)
                        species_j = configuration(j_b,j_1, j_2, j_3)
                        r_densities(species_i, species_j, l) = &
                          r_densities(species_i, species_j, l) + 1.0_real64
                      end if
                    end do
                  end do
                end do
              end do
            end do
          end do
        end do
      end do
    end do
    ! Nice nested do loop...

    ! Average them
    do i=1, n_shells
      do j=1, setup%n_species
        r_densities(j,:,i) = r_densities(j,:,i)/particle_counts(j)
      end do
    end do



Here is the caller graph for this function:

store_state()

subroutine, public analytics::store_state	(	real(real64), dimension(:,:,:,:,:), intent(inout), allocatable	averages,
		integer(array_int), dimension(:,:,:,:), intent(in)	config,
		type(run_params), intent(in)	setup )

Subroutine to add this configuration to the average.

This is needed to compute the average occupancy of each lattice site at the end of a simulation.

Author

C. D. Woodgate

Date

2019-2025

Parameters

averages	Array of floats where averages are being stored
config	Current atomic configuration
setup	Derived type containing simulation parameters

Returns

None

Definition at line 43 of file analytics.f90.


    integer(array_int), dimension(:,:,:,:), intent(in) :: config
    type(run_params), intent(in) :: setup
    real(real64), dimension(:,:,:,:,:), intent(inout), allocatable :: averages
    integer :: i,j,k,l,m

    do m=1, 2*setup%n_3
      do l=1, 2*setup%n_2
        do k=1, 2*setup%n_1
          do j=1, setup%n_basis
            do i=1, setup%n_species
              if (config(j,k,l,m) == i) then
                averages(i,j,k,l,m) = averages(i,j,k,l,m) + 1.0_real64
              end if
            end do
          end do
        end do
      end do
    end do


total_particle_count()

integer function, public analytics::total_particle_count	(	type(run_params)	setup,
		integer(array_int), dimension(:,:,:,:), intent(in)	config )

Function to count the total number of particles in the box.

This function was mainly used for testing during code development, to make sure no particles were dissapearing.

Author

C. D. Woodgate

Date

2019-2025

Parameters

setup	Derived type containing simulation parameters
config	Current atomic configuration

Returns

The total number of particles in the simulation cell

Definition at line 103 of file analytics.f90.

    !integer(array_int), allocatable, dimension(:,:,:,:), intent(in) :: config
    integer(array_int), dimension(:,:,:,:), intent(in) :: config
    type(run_params) :: setup
    integer :: total_count
    integer :: i,j,k,b

    total_count = 0

    do b=1, setup%n_basis
      do k=1, 2*setup%n_3
        do j=1, 2*setup%n_2
          do i=1, 2*setup%n_1
            if (config(b,i,j,k) .ne. 0_array_int) then
              total_count = total_count + 1
            end if
          end do
        end do
      end do
    end do

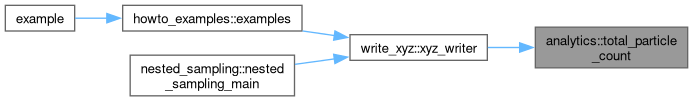

Here is the caller graph for this function:
